서지보호기 (SPD)

HOME > PRODUCTS > 서지보호기

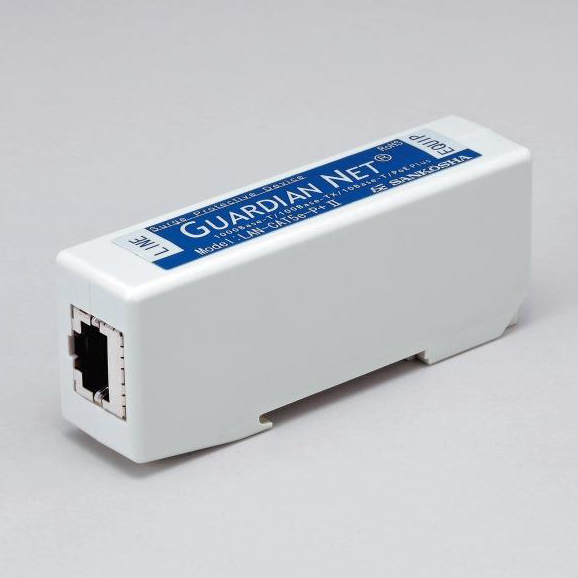

LAN용 LAN-CAT5e-P+Ⅱ



제품사양

Item LAN용 LAN-CAT5e-P+Ⅱ
Rated current 600mA
Applications
 - PoE System
- Gigabit Ethernet
- Network Camera
- The Wireless Access Point
- Telephone Equipment Applicable to VoIP
- Networking Equipment in the
- Outside Building
Applicable lines
 100BASE-TX/1000BASE-T
PoE IEEE802.3af/IEEE802.3at
Impulse withstand voltage
Category C2 (8/20㎲) KA
 5kA (10 times)
mpulse withstand voltage
Category D1 (10/350 μs)KA		 2.5kA (2 times)
최대지속동작전압 Uc(V~)
 DC60V
제한전압 Up(V~)kV
 500V or less
부착방식
 Din - Rail 사용부착

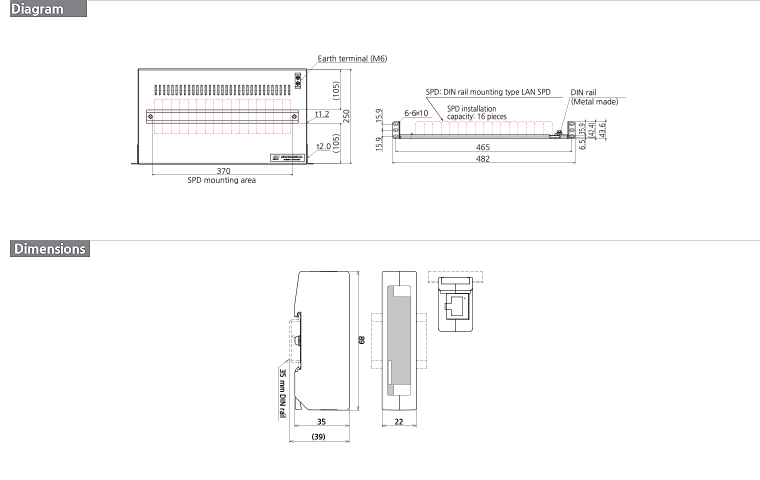

제품상세
